Hunter Central Coast Renewable Energy Zone
Network infrastructure upgrade
Ausgrid is the network operator delivering network infrastructure upgrades required to support the Hunter-Central Coast Renewable Energy Zone (HCC REZ), following the determination by Energy Corporation of NSW (EnergyCo).
The HCC REZ is critical to ensuring the renewables potential of the Hunter area can be harnessed to deliver a reliable and sustainable energy supply for the region. It is the biggest enhancement to the Ausgrid network in more than 25 years. The HCC REZ will have the capacity to transfer an additional 1 gigawatt of renewable energy by 2028.
By using our existing easements (electricity corridors), it will minimise impacts to landowners, the community and the environment.
What we're delivering
0 km
upgrade of existing subtransmission powerlines0 km
new underground optic fibre communications cable0 GW
network transfer capacity0
new substations0
upgrades to existing substationsWhere are we building the infrastructure?

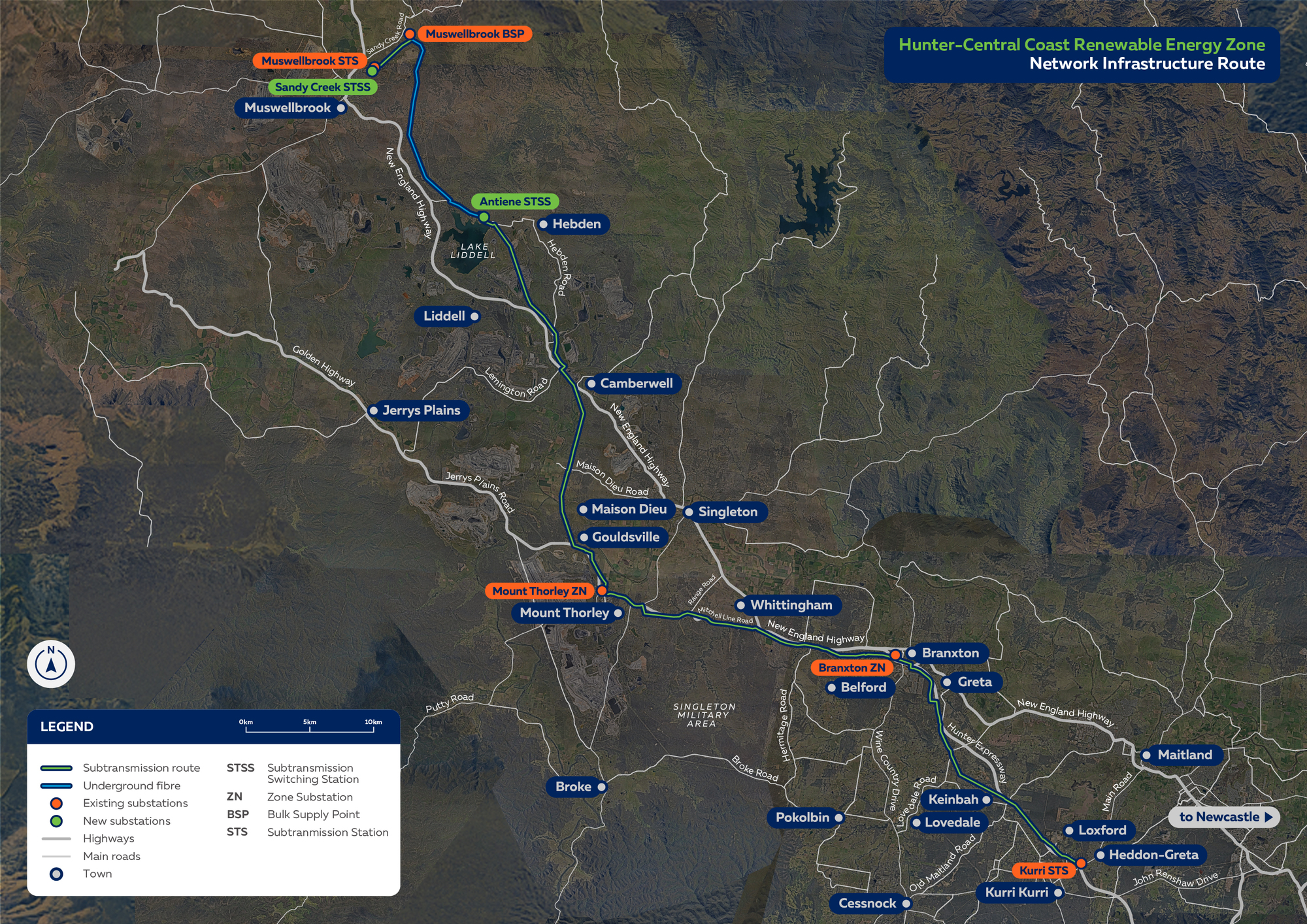

The network infrastructure upgrades run from Kurri Kurri to Muswellbrook.
A timeline of the phases
Mid 2025
- Review of environmental factors (REF) on public display.
Mid-Late 2025
- Detailed design and early works.
- Review of environmental factors complete
Late 2025
- AER Determination
- Deed signing with EnergyCo (AER approval)
Early 2026
- Start of subtransmission line and substation construction work
Mid 2028
- Commission and move into operation and maintenance phase
Regional employment and business opportunities
As this project progresses, it opens new business opportunities and supply chain needs. Businesses can register their capabilities through our ICN Gateway page.
By registering, businesses can showcase their products and services to be a part of the project’s supply chain.
Project newsletters
Read our previous newsletter editions:
Frequently Asked Questions
The HCC REZ is the Renewable Energy Zone, declared by the Minister for Energy in 2022, that stretches through parts of the Central Coast, Newcastle and Hunter regions.
This region will become host to numerous solar, wind and hydro generation projects, as well as large-scale batteries, delivering an additional 1GW network transfer capacity to the grid.
The Hunter and Central Coast regions have excellent renewable energy resources and can utilise existing power stations, rehabilitated mining land, electricity network infrastructure, port and transport facilities, and a skilled workforce, making it an excellent choice for a REZ.
Ausgrid’s proposed works include:
- Upgrading 85km of existing sub-transmission power lines
- Building two new energy hubs (substations)
- Upgrading two existing energy hubs (substations)
- Installing 18km new underground fibre optic communications cable
The proposed network infrastructure upgrades run from Kurri Kurri to Muswellbrook.
To enable the increase in network capacity, upgrades need to be made to the existing infrastructure.
In December 2024, Ausgrid signed an agreement with EnergyCo to be the preferred network operator to provide an additional 1GW of renewable energy transfer capacity by 2028. Ausgrid is responsible for the planning, design, construction, financing, operating and maintaining the network infrastructure of the HCC REZ project.

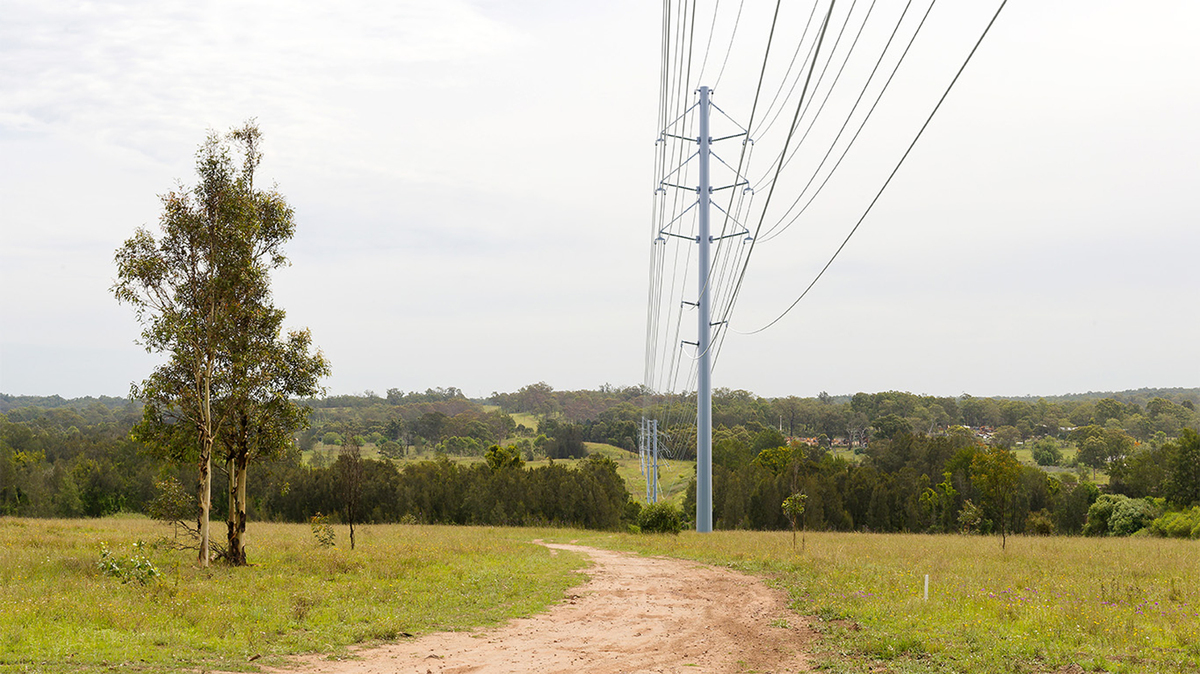

Ausgrid will replace approximately 85km of existing sub-transmission lines between Kurri Kurri and Muswellbrook. Timber poles would be replaced with taller, stronger, metal monopoles, like this:
- 66kV single pole structures
- 132kV two pole structures
The proposed new substations are located in Muswellbrook (Sandy Creek substation) and Singleton (Antiene substation).
No. The HCC REZ upgrades refer to the sub-transmission infrastructure, while the Hunter Transmission Project (HTP) is a new transmission line (lattice towers) project, to connect the Central West Orana and New England REZs with the existing 500kV transmission network at Eraring.
Final Review of Environmental Factors
Ausgrid has reviewed and considered against the requirements of the Environmental Planning and Assessment Act 1979 (EP&A Act) and has determined the Hunter-Central Coast Renewable Energy Zone Network Infrastructure project approved to proceed to construction.
Review of Environmental Factors
Under the Environmental Planning and Assessment Act 1979, Ausgrid is the determining authority for this project. As part of the REF process, an environmental assessment (known as a Review of Environmental Factors, or REF) has been prepared to assess the potential environmental impacts associated with the project.
Community Engagement
Ausgrid is working closely with the community and regional stakeholders during the delivery of the HCC REZ.
Planning, designing and building new electricity network infrastructure in the Hunter and Central Coast regions requires a detailed understanding of the area’s future large energy users and renewable energy projects.
Ausgrid is dedicated to working continuously with local landowners, communities and businesses, to ensure we deliver social value to the communities that will host the infrastructure required.
Yes, some landowners will be affected.
Wherever possible, Ausgrid has used the existing infrastructure corridor to minimise potential impact on landowners.
We have been in contact with owners of affected land will continue to work with these important stakeholders throughout the lifetime of the Project.
EnergyCo and Ausgrid are committed to working with potentially affected landowners to minimise impacts on farming, mining and other business activities through the life of the project.
During the planning phase, we want to understand farming operations and other possible property impacts or concerns to inform the design and location of the sub-transmission route.
This could include avoiding dwellings, limiting construction access, and other amenity issues.
